Home YC SIMLAN Product Center>Purely electric drive systems>YCET270

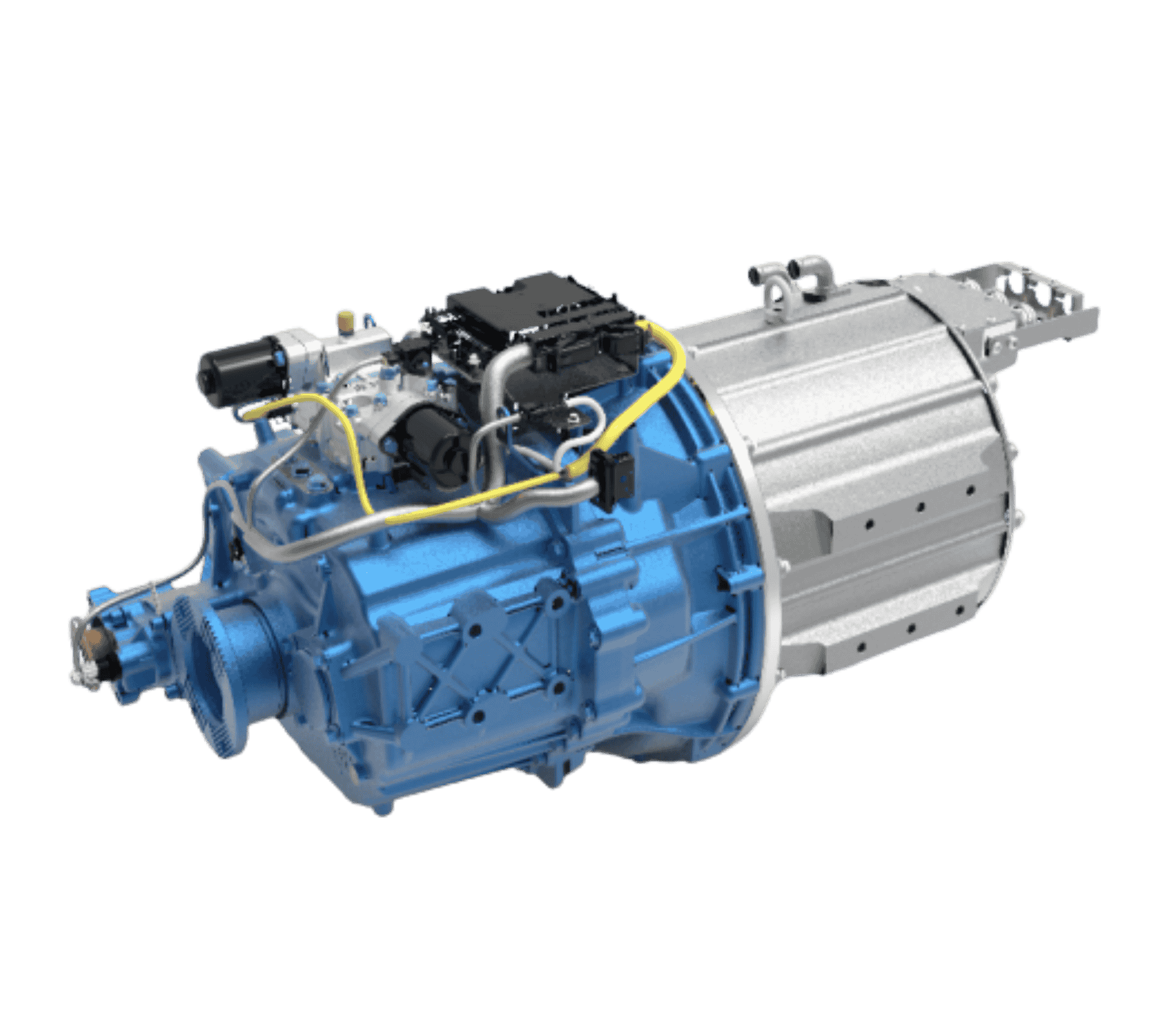

YCET270

YCET270-0242

High reliability, smooth shifting without setbacks

Consult Immediately YC SIMLAN
YCET270
Product Introduction
产品优势
产品参数

产品优势

reliability

reliability

Highly integrated design, compact structure, small shape size; high and low voltage harness first fixed point design, effectively prevent harness interface failure.

reliability

reliability

Highly integrated design, compact structure, small shape size; high and low voltage harness first fixed point design, effectively prevent harness interface failure.

energy-efficient

energy-efficient

The highest system efficiency ≥95.7% system efficiency high efficiency area "double 85"

energy-efficient

energy-efficient

The highest system efficiency ≥95.7% system efficiency high efficiency area "double 85"

产品参数

model
YCET270-0242
Appearance size (MM) L * W * H
1367*594*616
motor model
YCET270-0242
motor type
permanent magnet synchronous motor
Voltage platform (VDC)
600
Motor rating/peak power (kW)
270/405
Motor rated/peak torque (N·m)
1400/2400
Motor rated/peak speed (r/min)
1842/3000
Weight (kg)
449
