YCET120T
Pure electric drive system for mining loaders
High speed motor + gearbox scheme
reliability
Highly integrated design, compact structure, small shape size; high and low voltage harness first fixed point design, effectively prevent harness interface failure.
Highly integrated design, compact structure, small shape size; high and low voltage harness first fixed point design, effectively prevent harness interface failure.
energy-efficient
Maximum system efficiency ≥97.5% System efficiency high efficiency area "double 90"
Maximum system efficiency ≥97.5% System efficiency high efficiency area "double 90"
|
model
|
TX300XS115
|
|
|---|---|---|
|
Appearance size (MM) L * W * H
|
543*425*500
|
|
|

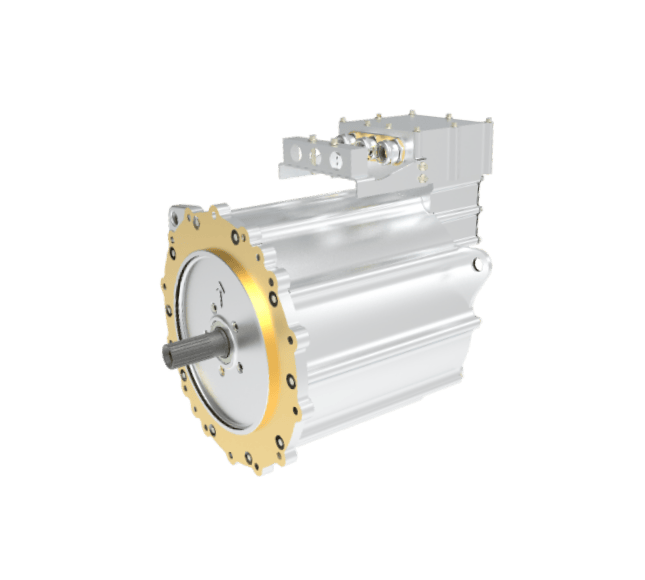

motor model
|
YCET120T-0300
|
|
|
motor type
|
permanent magnet synchronous motor
|
|
|
Voltage platform (VDC)
|
618
|
|
|
Motor rating/peak power (kW)
|
120/230
|
|
|
Motor rated/peak torque (N·m)
|
460/920
|
|
|
Motor rated/peak speed (r/min)
|
2400/9000
|
|
|
Weight (kg)
|
125
|
