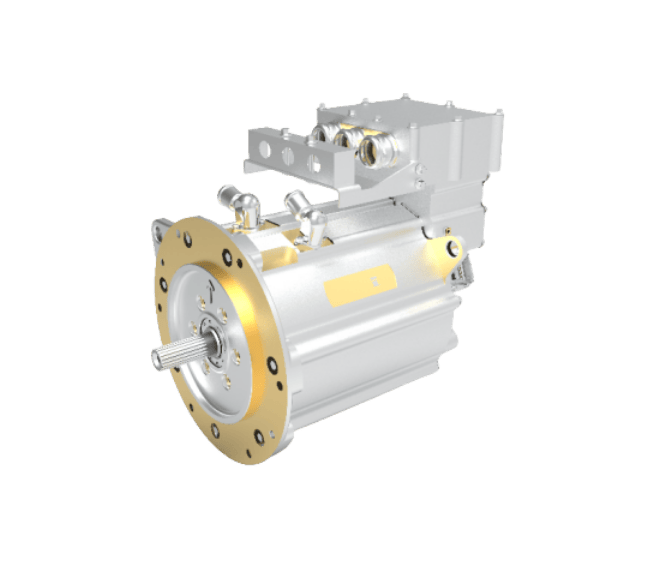

YCET115T

YCET115T-0300

Pure electric drive system for mining loaders

High speed motor + gearbox scheme

Consult Immediately YC SIMLAN
YCET115T
Product Introduction
产品优势
产品参数

产品优势

reliability

reliability

Highly integrated design, compact structure, small shape size; high and low voltage harness first fixed point design, effectively prevent harness interface failure.

reliability

reliability

Highly integrated design, compact structure, small shape size; high and low voltage harness first fixed point design, effectively prevent harness interface failure.

energy-efficient

energy-efficient

Maximum system efficiency ≥97.2% System efficiency high efficiency area "double 90"

energy-efficient

energy-efficient

Maximum system efficiency ≥97.2% System efficiency high efficiency area "double 90"

产品参数

model
TX300XS115
Appearance size (MM) L * W * H
476*308*407
motor model
YCET115T-0300
motor type
permanent magnet synchronous motor
Voltage platform (VDC)
618
Motor rating/peak power (kW)
115/196
Motor rated/peak torque (N·m)
138/234
Motor rated/peak speed (r/min)
8000/10000
Weight (kg)
57
